Albatros ABS-100G

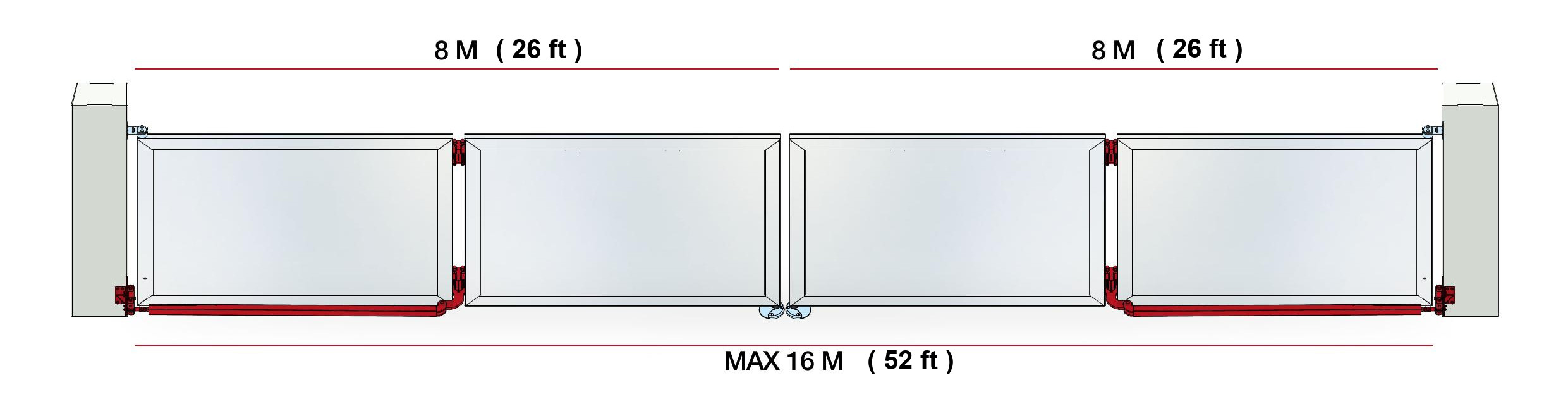

Albatros ABS-100G For single gates up to 26ft (8m) or double gates up to 52ft (16m)
Note: Gate width is limited to 3 times the height.

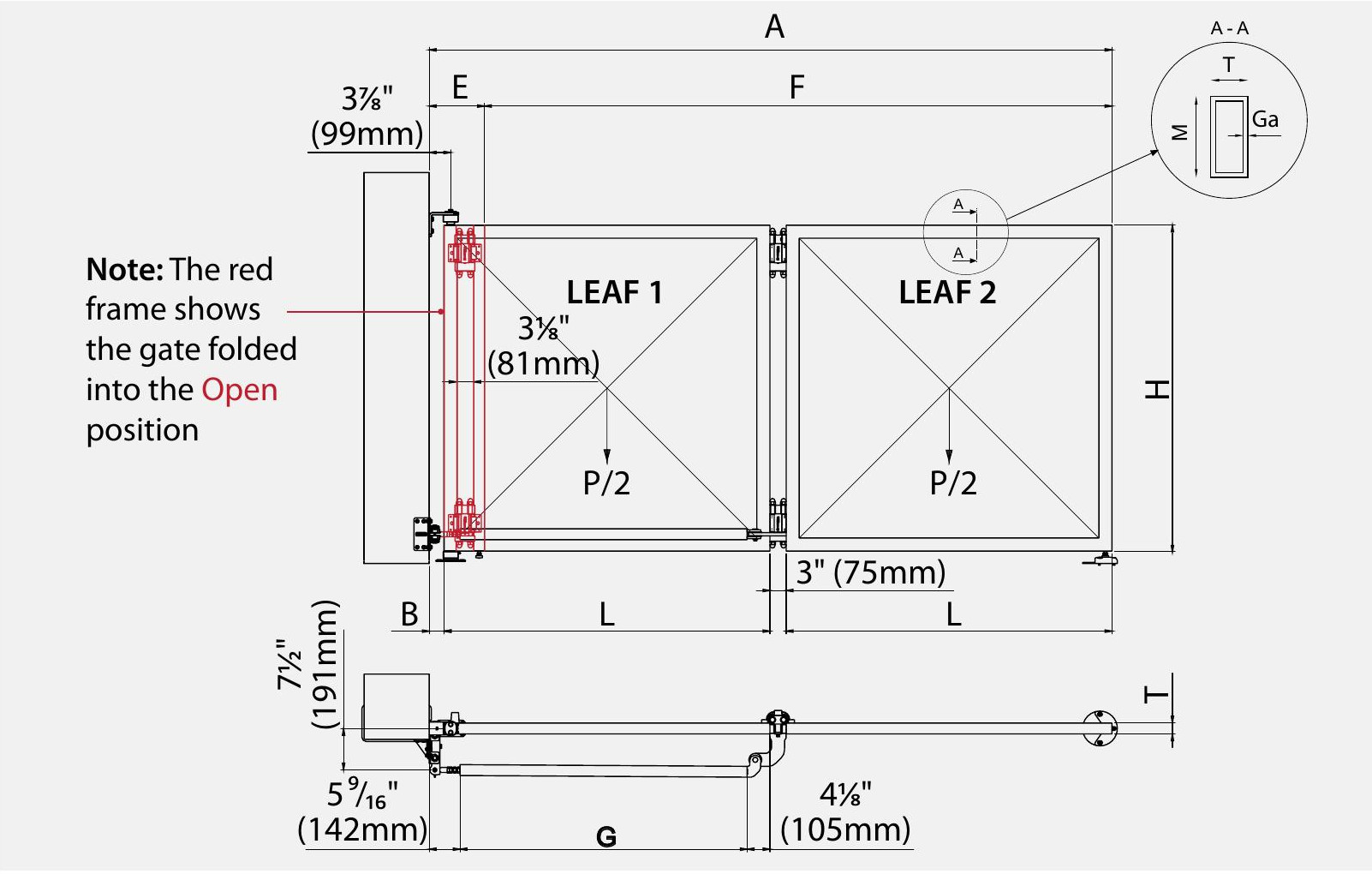

ABS-100G System Configuration Formulas
For Opening Size "A" and Gate Frame Profile Thickness "T"
B: Hinge gap B (in) = 3-7/8" - T/2
L: Gate leaf width L (in) = (A - 3" - B) ÷ 2
G: Hinge to post connector tube length G (in) = L - 9-3/4" + B
E: Gate width in open position E (in) = (2 x T) + B + 3-1/8"
F: Net opening size F (in) = A - E
NOTE: The parameters in BOLD in the formulas above are inches



Piccolo Hinge Gaps by Profile Size
FRAME SIZE HINGE GAP ADJUSTABILITY
2" 2-3/4" +/- 5/16"
3" 2-1/4" +/- 5/16"
4" 1-3/4" +/- 5/16"
ABS-100G Gate Frame Size Requirements
OPENING
A (in)		 LEAF WEIGHT
P/2 MAX (lbs)		 GATE FRAME MIN
TUBE SIZE (in)
60" (5') 330 4" x 2" 11 Ga
78" (6'6") 330 4" x 2" 11 Ga
96" (8') 330 4" x 2" 11 Ga
120" (10') 330 6" x 2" 11 Ga
144" (12') 330 6" x 2" 11 Ga
156" (13') 330 6" x 2" 11 Ga
NOTE: For leaf weights (P/2) over 330 lbs., contact AIDI for technical support at 908.757.2323



As indicated in the table above, we recommend the use of tubing specified to make your gate structurally sound/rigid to avoid bending during opening and closing cycles. It is also advisable to limit the overall gate weight as much as possible.

Spec Sheet

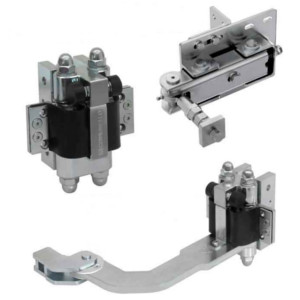

Albatros Kit

ABS-100G

Use this kit for single gates up to 13ft or double gates up to 26ft

Hinge to Post Connector

ABS-10G

This tube is 9'10" long, supplied raw

Ground Strike

ABS-16

Use for left or right swinging gates.6-1/4” dia., 1-3/16” high

Drilling template with rivets and screws

ABS-20G

Spec Sheet

Spec Sheet

Ground Mount - Screw-On Hinge Set

85PST-G & 87PST-G

3/16" thick mounting bracket
9/16" Gap adjustment
Sealed Bearings
2-11/16" Hinge diameter

Spec Sheet

Spec Sheet

Post Mount - Screw-On Hinge Set

85L-G & 87L-G

3/8" thick mounting bracket
9/16" Gap adjustment
Sealed Bearings
2-11/16" Hinge diameter

Spec Sheet

Spec Sheet

Ground Mount - Weld-On Hinge Set

85G & 87G

3/8" thick mounting bracket
9/16" Gap adjustment
Sealed Bearings
2-11/16" Hinge diameter
