1 folding door on the left, 1 pull door on the right

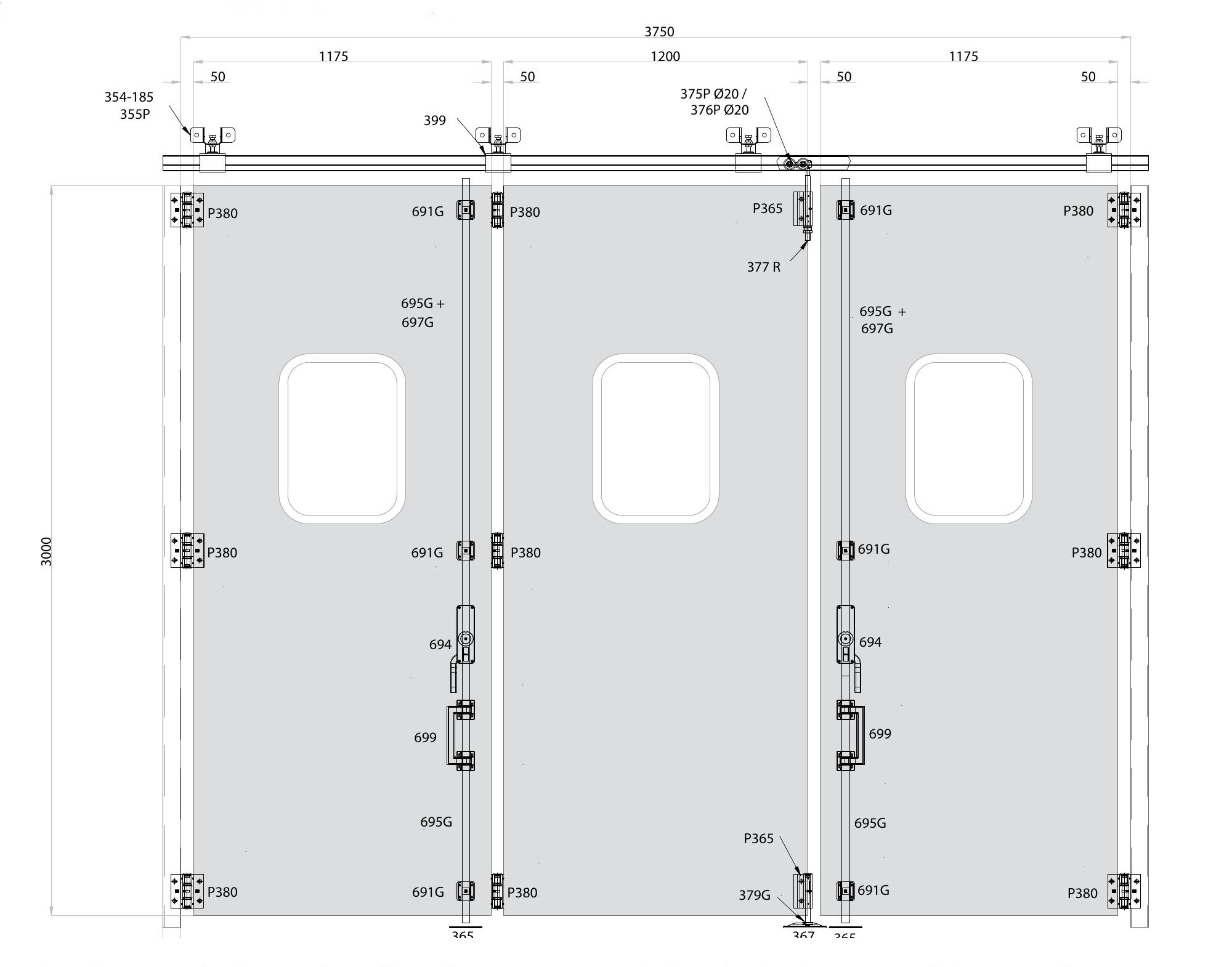

Door configuration:

Medium weight
1 folding door on the left
1 pull door on the right

Folding door hardware includes track, trolleys, hinges, pins, and drop bolts. A variety of door combinations are available when combining these hardware components. For example a folding door can be installed over part of the opening and a pull door can be installed opposite the folding door all with the same hardware.
The hardware shown below will accommodate doors that weigh up to 880 lbs.
The track is mounted above the opening and installed with brackets that are mounted on the wall. The trolleys are hidden inside the track and are connected to the hinges below to allow for a smooth folding/sliding operation.
Drop bolt levers are available to secure the door in the closed position when not being used.

Spec Sheet

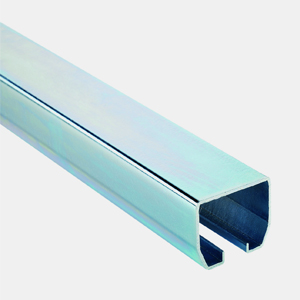

Galvanized Track

399

19.68FT or 9.84FT lengths Small track for trolleys with 4 wheels

Spec Sheet

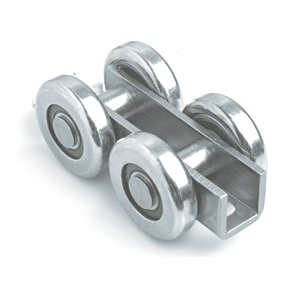

Galvanized Trolley

375-P20

Small steel trolley with 4 wheels. 880 lbs. per trolley. Use with track 399. Requires M20 pin.

Spec Sheet

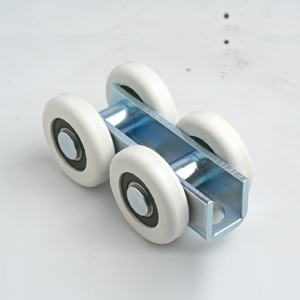

Galvanized Trolley

376-P20

Small steel trolley with 4 nylon wheels. 880 lbs. per trolley. Use with track 399. Requires M20 pin.

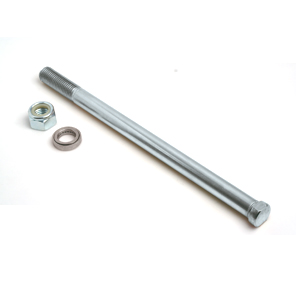

Galvanized Upper Pin for Folding Door Trolleys

377R

13" (330mm) long x M20. Use with trolleys 375-P20 or 376-P20 and hinge P365.

Spec Sheet

Galvanized Adjustable Wall Support

354-185

Adjustable wall support. 7-1/4" long. Recommended spacing 27-1/2" apart.

Spec Sheet

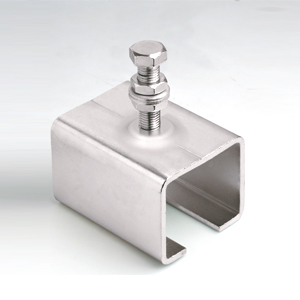

Galvanized Adjustable Track Support

355P

Use with 399 track Width: 3-3⁄8" (86mm) Height: 3" (75mm) Length: 4" (100mm)

Spec Sheet

Galvanized Right Operating Large Lever

694-MC-DX

Large lever used to operate the drop bolt.

Spec Sheet

Galvanized Left Operating Large Lever

694-MC-SX

Large lever used to operate the drop bolt.

Spec Sheet

Galvanized Drop Bolt

695G-9.84FT

Tubular drop bolt for use with the large lever. Size 30mm x 10mm

Spec Sheet

Galvanized Drop Bolt Guide

691G

Use with item 695G

Spec Sheet

Black Nylon Pull Handle with Guides

699

Black nylon pull handle with guides. Use with drop bolt item 695G. From top of bracket to bottom of bracket 11-7/16" high. From top of handle to bottom of handle 9-1/2" high.

Spec Sheet

Galvanized Ground Strike Plate

365

Ground strike plate to receive drop bolt item 695G.

Spec Sheet

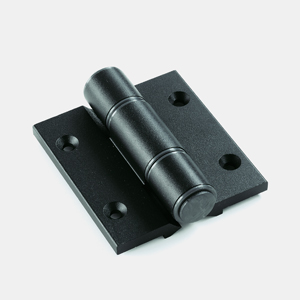

Die-cast Aluminum Hinge

P380

Hinge with 2 legs. Weight capacity: 660 lbs/pair. Black finish

Spec Sheet

Die-cast Aluminum Hinge

P365

Hinge with 1 off-center leg. Weight capacity: 440 lbs/pair. Black finish. Use with upper pin item 377-R. Use with lower pin item 379G-135

Spec Sheet

Nylon Ground Strike

367

Ground strike plate to receive lower pin item 379-G-135. Black nylon with steel reinforcement.

Spec Sheet

Galvanized Adjustable Lower Pin

379G-135

5-5/16" long. Use with item 367.

Spec Sheet

Gate Leaf Stopper

239
