2 180° folding doors that meet in the center - heavy duty

Door configuration:

Heavy duty

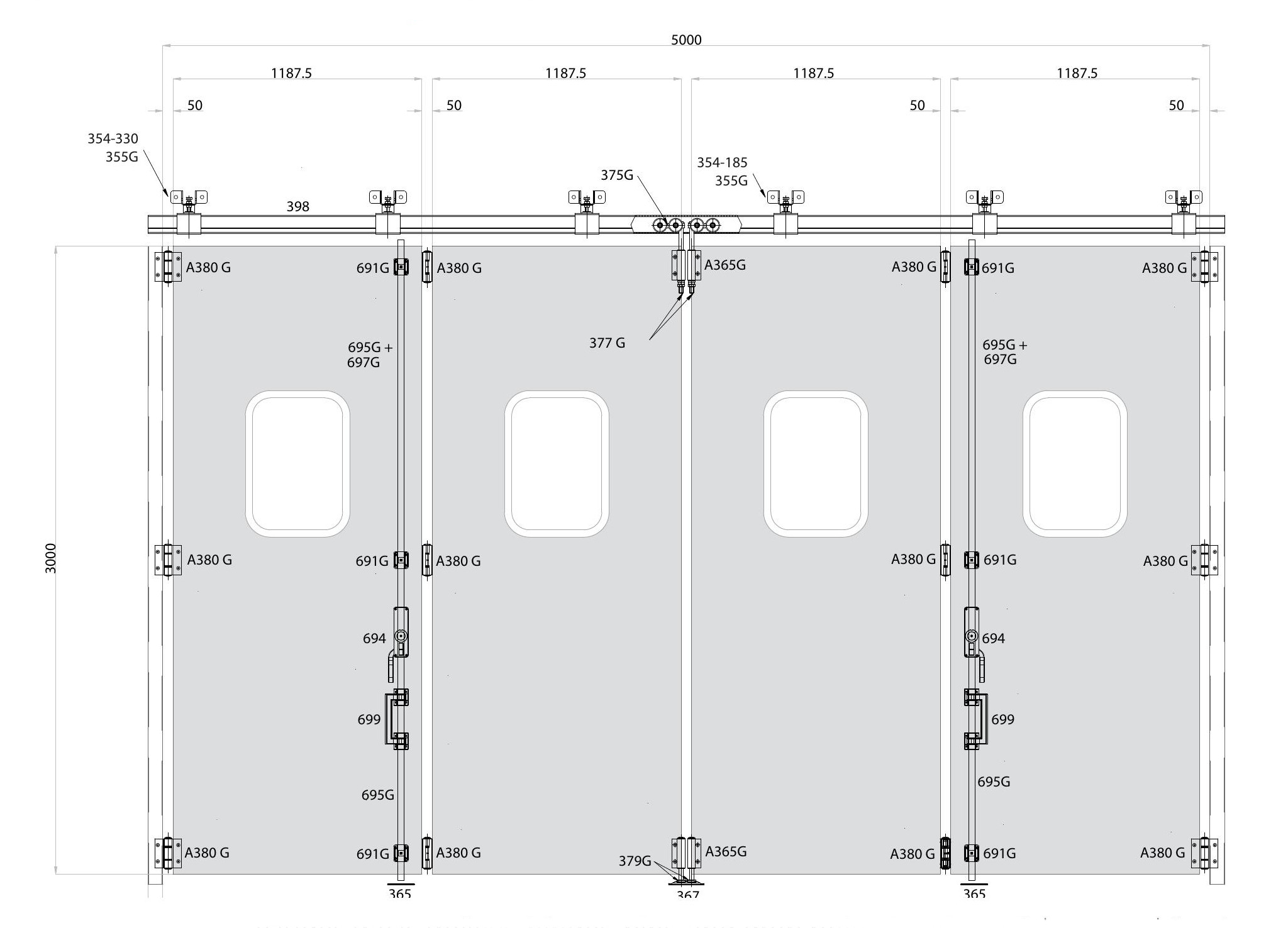

Two 180° Folding Doors that meet in the center

Folding door hardware includes track, trolleys, hinges, pins, and drop bolts. A variety of door combinations are available when combining these hardware components. For example when the correct hinges and wall brackets are used on the door a 180° folding door can be designed. This type of folding door will stack neatly up against the wall when fully open.
The hardware shown below will accommodate doors that weigh up to 1764 lbs.
The track is mounted above the opening and installed with brackets that are mounted on the wall. The trolleys are hidden inside the track and are connected to the hinges below to allow for a smooth folding/sliding operation.
Drop bolt levers are available to secure the door in the closed position when not being used.

Spec Sheet

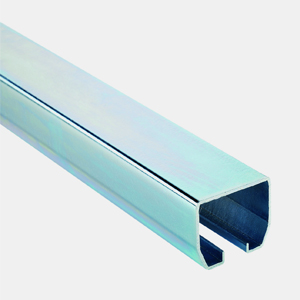

Galvanized Track

398

19.68FT or 9.84FT lengths Large track for trolleys with 4 wheels

Spec Sheet

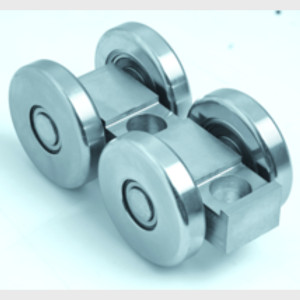

Galvanized Trolley

375G

Large steel trolley with 4 wheels. 1764 lbs. per trolley. Use with track 398. Requires M20 pin.

Spec Sheet

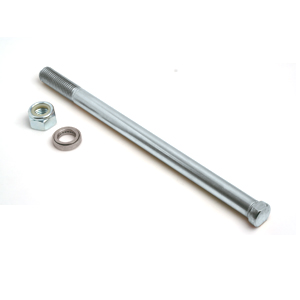

Galvanized Upper Pin for Folding Door Trolleys

377-G-330

13" (330mm) long x M20) Use with trolley 375G and hinge P365.

Spec Sheet

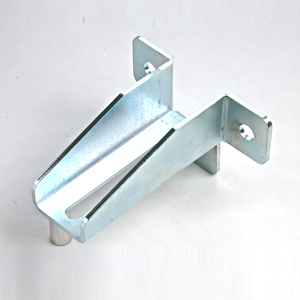

Galvanized Adjustable Wall Support

354-185

Adjustable wall support. 7-1/4" long. Recommended spacing 27-1/2" apart.

Spec Sheet

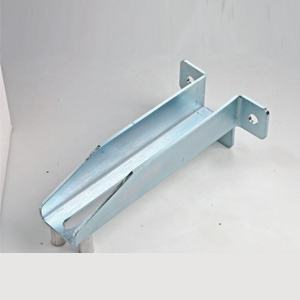

Galvanized Adjustable Wall Support

354-330

Adjustable wall support. 13" long. Recommended spacing 27-1/2" apart.

Spec Sheet

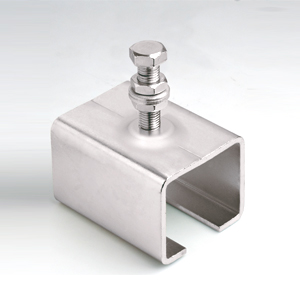

Galvanized Adjustable Track Support

355G

Use with 398 track Width: 47/16" (113mm) Height: 4" (101mm) Length: 4" (100mm)

Spec Sheet

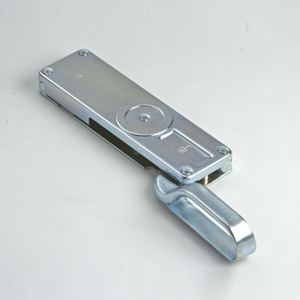

Galvanized Right Operating Large Lever

694-MC-DX

Large lever used to operate the drop bolt.

Spec Sheet

Galvanized Left Operating Large Lever

694-MC-SX

Large lever used to operate the drop bolt.

Spec Sheet

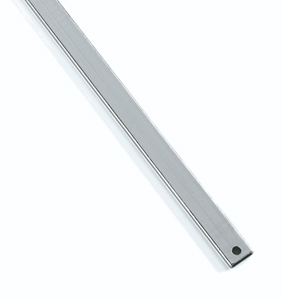

Galvanized Drop Bolt

695G-9.84FT

Tubular drop bolt for use with the large lever. Size 30mm x 10mm

Spec Sheet

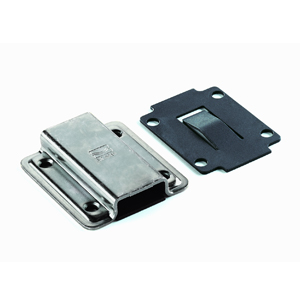

Galvanized Drop Bolt Guide

691G

Use with item 695G

Spec Sheet

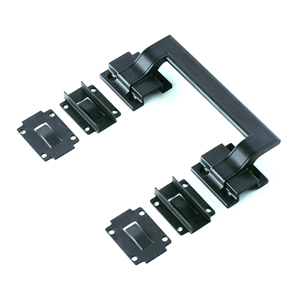

Black Nylon Pull Handle with Guides

699

Black nylon pull handle with guides. Use with drop bolt item 695G. From top of bracket to bottom of bracket 11-7/16" high. From top of handle to bottom of handle 9-1/2" high.

Spec Sheet

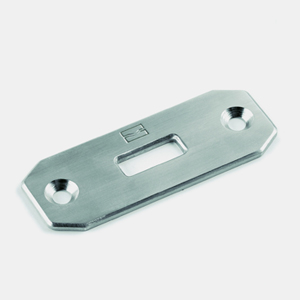

Galvanized Ground Strike Plate

365

Ground strike plate to receive drop bolt item 695G.

Spec Sheet

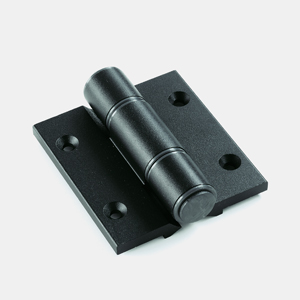

Die-cast Aluminum Hinge

A380-G

Large hinge with off center leg. Weight capacity: 880 lbs/pair. Black finish

Spec Sheet

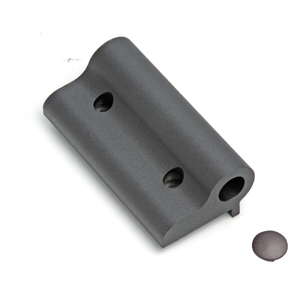

Die-cast Aluminum Hinge

P365

Hinge with 1 off-center leg. Weight capacity: 440 lbs/pair. Black finish. Use with upper pin item 377-R. Use with lower pin item 379G-135

Spec Sheet

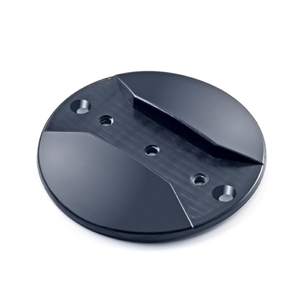

Nylon Ground Strike

367

Ground strike plate to receive lower pin item 379-G-135. Black nylon with steel reinforcement.

Spec Sheet

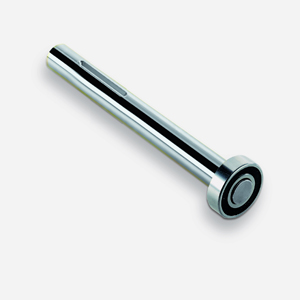

Galvanized Adjustable Lower Pin

379G-135

5-5/16" long. Use with item 367.

Spec Sheet

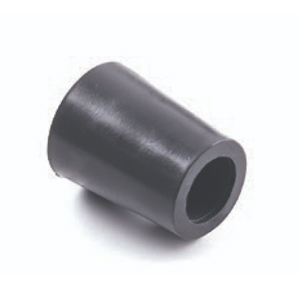

Gate Leaf Stopper

239
