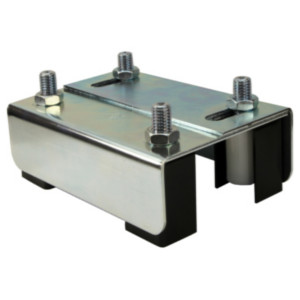

Upper Guide for 1st Leaf255-220-CFor 1-1/4" - 2-3/8" frames |
Upper Guide for 1st Leaf256-220For up to 3-1/8" frames |
Galvanized U-Channel for 2nd & 3rd LeavesRG-38719.68FT or 9.84FT lengths 1-1/4" I.D. |
Aluminum U-Channel for 2nd & 3rd LeavesCG-23720FT or 10FT lengths 1-1/4" I.D. |
2-Wheel Upper Guide for use in U-ChannelRG-252 |
|
4-Wheel Upper Guide for use in U-ChannelRG-254Comunello recommends this guide for added stability with changing wind speeds and smoother rolling gates. |
Galvanzed Receiver BracketCG-15MThis adjustable mounting bracket will hold a gate receiver |
Galvanized Gate Receiver with 2-Nylon rollersCG-30MFor 2" - 3" frames |
Galvanized Top Cup Gate Receiver with Shock Absorber199-502" inside diameter |
Galvanized Top Cup Gate Receiver with Shock Absorber199-602-3/8" inside diameter |
|
Runaway Gate Stop202To be screwed in place. This stop will keep the gate from moving forward off of the track. To comply with safety standards, a gate stop should also be used at the back of the gate. |
Damped Runaway Gate Stop202F-ATo be screwed in place. This stop will keep the gate from moving forward off of the track. To comply with safety standards, a gate stop should also be used at the back of the gate. |

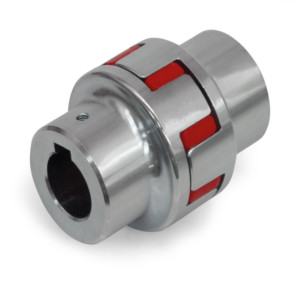

Drive Shaft CouplingCG-58Use when connecting a gate operator to the principal drive wheel. |
Ranger Speed Reduction SystemRG-40The RG-40 speed reducer cuts the speed of the first panel by 50%, to reduce the speed of 2 or 3 leaf Ranger telescoping gates. The gear box is mounted to the pad and connected directly to the rack on the first leaf. The motor is then coupled using the CG-58 adapter, directly to the speed reduction system drive shaft. Telescoping systems move twice or three times the speed of single gates, so reducing the speed of the leading edge is critical for safety. |
Electromechanical Limit SwitchRG-45The RG-45 switches replace the limit switches that come with the gate operator.As the gate operator is moved back from the gate by several inches to fit the RG-40, the typical limit switches may not attach or work easily. Specs:
|
