Rolling Gate System Accessories

Straight top guide assemblies help support and guide the gate through the opening. Our larger guides are supplied with 4 covered rollers which complies with ASTM F2200 and UL325 safety standards. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.

For gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions choose steel or aluminum U-channel and an accompanying side mounted guide roller. Plain nylon or rubber rollers also act as a support for the gate when at least 2 are used.

Gate stops are offered to prevent the gate from rolling/sliding off of the track.

Cad Drawing Spec Sheet

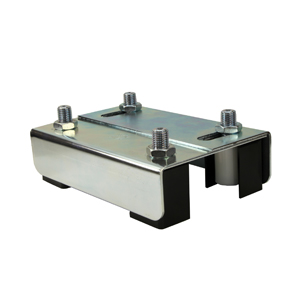

Galvanized Adjustable Upper Guide

255-220-C

For up to 2-3/8" frames
Comes with roller covers

Cad Drawing Spec Sheet

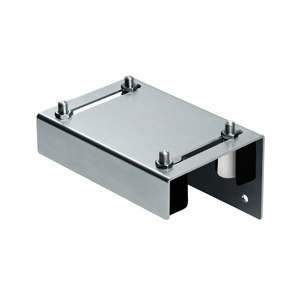

Galvanized Adjustable Upper Guide

256-220

For up to 3" frames
Comes with roller covers

Cad Drawing Spec Sheet

Galvanized Adjustable Upper Guide

256-300

For up to 4-1/2" frames
Comes with roller covers

Cad Drawing Spec Sheet

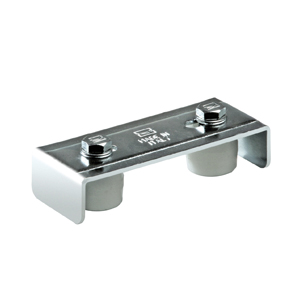

Galvanized Adjustable Upper Guide

247

For 1-1/4" to 2" frames

Cad Drawing Spec Sheet

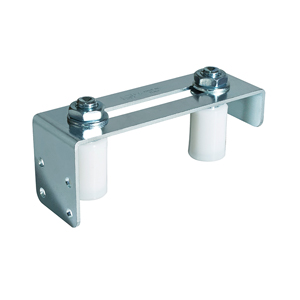

Galvanized Adjustable Upper Guide with Mounting Bracket

247F

For up to 3-3/8" frames

Cad Drawing Spec Sheet

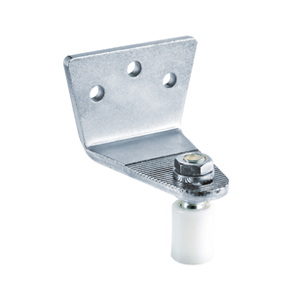

Galvanized Wall Mounted Top Guide

249-30

Cad Drawing Spec Sheet

Galvanized 1-1/2" U-Channel

CG-254

1-1/2" I.D.
9.84FT lengths

Cad Drawing Spec Sheet

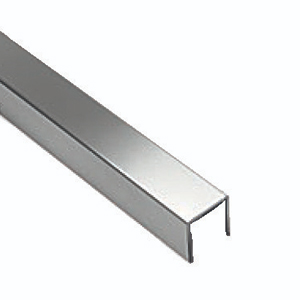

Galvanized 1-1/4" U-Channel

RG-387

1-1/4" I.D.
19.68FT or 9.84FT lengths

Cad Drawing Spec Sheet

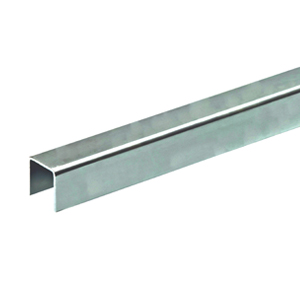

Aluminum 1-1/4" U-Channel

CG-237

1-1/4" I.D.
20FT or 10FT lengths

Cad Drawing Spec Sheet

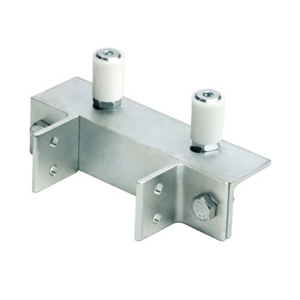

Galvanized Double Nylon Roller

258-30

1-1/4" dia. nylon rollers

Cad Drawing Spec Sheet

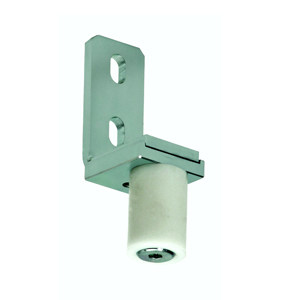

Galvanized Single Nylon Roller

CG-252-30

1-1/4" dia. nylon roller

Cad Drawing Spec Sheet

Galvanized Single Nylon Roller

CG-252

1-1/2" dia. nylon roller
Use with CG-254

Cad Drawing Spec Sheet

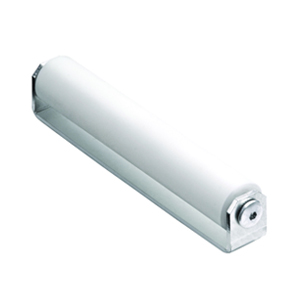

Galvanized Nylon Side Roller

253-40

10" Long. 1-1/4" dia. nylon roller. 2" clearance. Use 2 per gate minimum.

Cad Drawing Spec Sheet

3" Long Non Marring Rubber Roller

NR3

2-1/4" dia. roller

Cad Drawing Spec Sheet

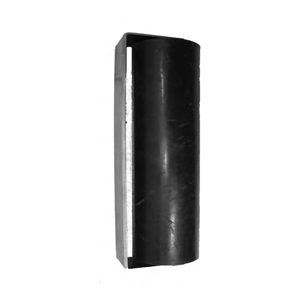

6" Long Non Marring Rubber Roller

NR6

2-1/4" dia. roller

Cad Drawing Spec Sheet

3" Long Rubber Roller

RR3

2-3/8" dia. roller

Cad Drawing Spec Sheet

6" Long Rubber Roller

RR6

2-3/8" dia. roller

Cad Drawing Spec Sheet

12" Long Rubber Roller

RR12

2-3/8" dia. roller

Cad Drawing Spec Sheet

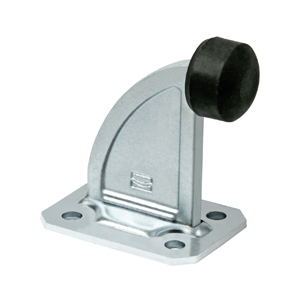

Runaway Gate Stop

202

To be screwed in place. This stop will keep the gate from moving forward off of the track. To comply with safety standards, a gate stop should also be used at the back of the gate.

Cad Drawing Spec Sheet

Damped Runaway Gate Stop

202F-A

To be screwed in place. This stop will keep the gate from moving forward off of the track. To comply with safety standards, a gate stop should also be used at the back of the gate.
