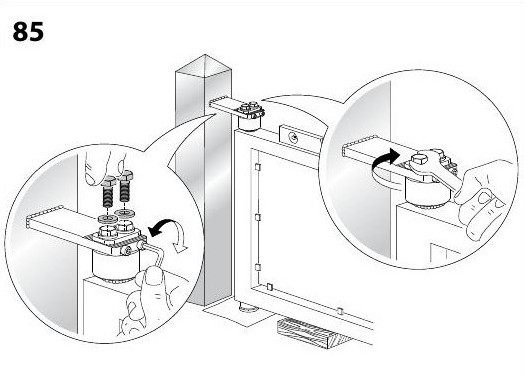

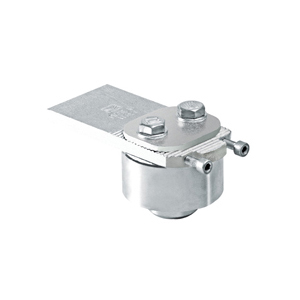

Adjustable upper hinge with sealed bearings and a plate to be welded85M3/8" thick mounting bracket 2" Hinge diameter 2-1/4" - 3-3/8" Adjustability Maximum Capacity 990 lbs |
Adjustable upper hinge with sealed bearings and a plate to be welded85G3/8" thick mounting bracket 2-11/16" Hinge diameter 3-1/2" - 4-1/16" Adjustability Maximum Capacity 1400 lbs |
|
|

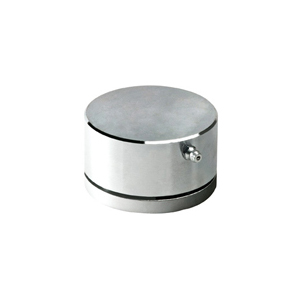

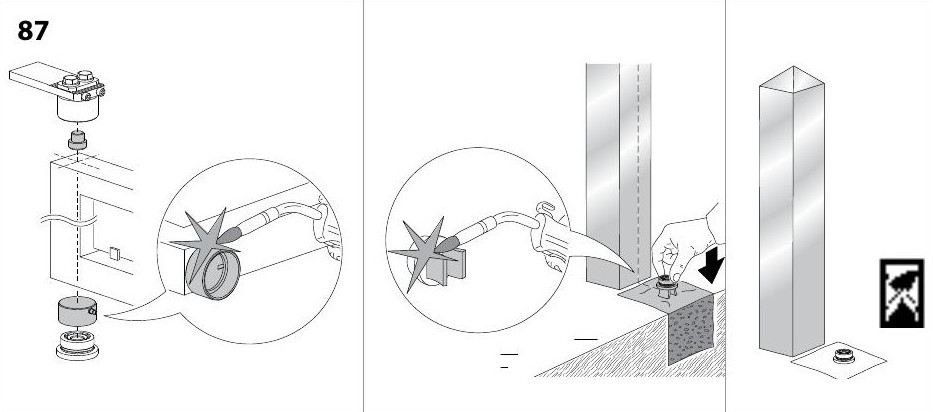

Bottom hinge with thrust bearing to be welded87M2" Hinge diameter Maximum Capacity 990 lbs |
Bottom hinge with thrust bearing to be welded87G2-11/16" Hinge diameter Maximum Capacity 1400 lbs |
|
|

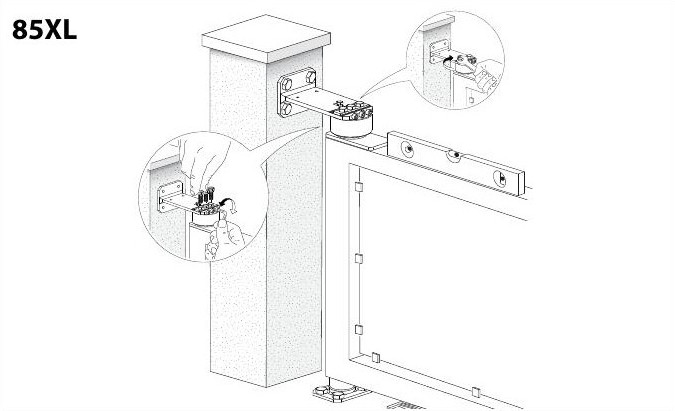

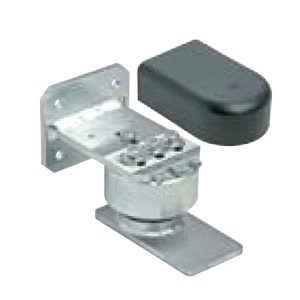

Double adjustable heavy duty upper hinge with sealed bearings and plate to be screwed on85XL1/2" thick mounting bracket 5" Hinge diameter 5-3/16" - 6-1/2" Adjustability Maximum Capacity 8800 lbs Suppllied with cover |
|
|
|

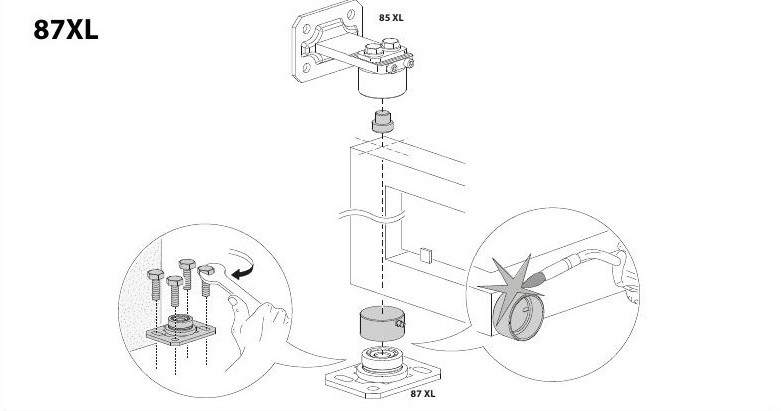

Heavy duty bottom hinge with thrust bearing and plate to be screwed on87XL1/2" thick mounting plate 4-1/4" Hinge diameter Maximum Capacity 8800 lbs |
|
|
|

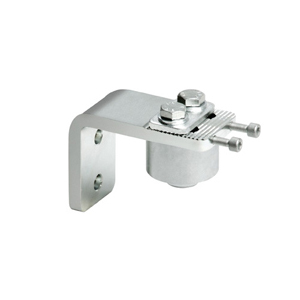

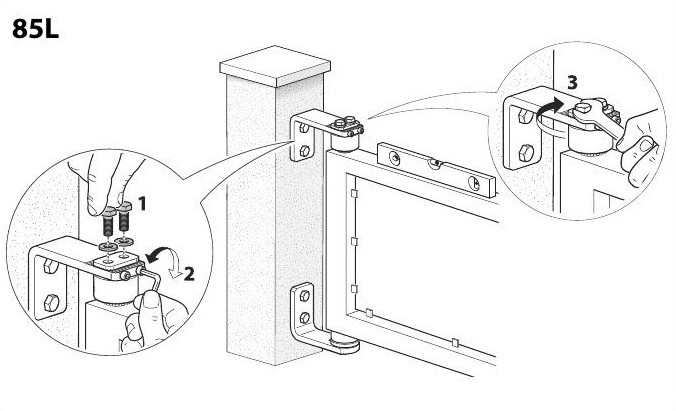

Adjustable upper hinge with L-Bracket to be screwed on and sealed bearings85L-M3/8" thick mounting bracket 2" Hinge diameter 2-1/4" - 3-3/8" Adjustability Maximum Capacity 770 lbs |
Adjustable upper hinge with L-Bracket to be screwed on and sealed bearings85L-G3/8" thick mounting bracket 2-11/16" Hinge diameter 3-1/2" - 4-1/16" Adjustability Maximum Capacity 1100 lbs |
|
|

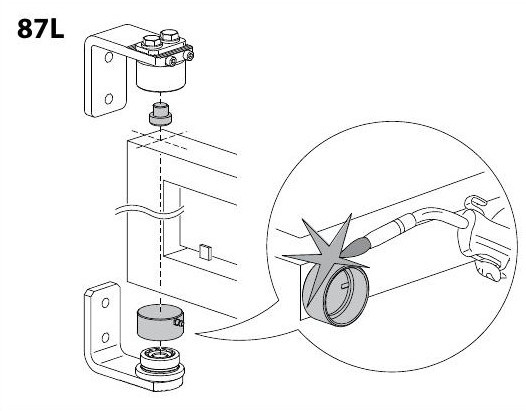

Adjustable bottom hinge with L-Bracket to be screwed on and sealed bearings87L-M3/8" thick mounting bracket 2" Hinge diameter 2-3/16" - 3-3/8" Adjustability Maximum Capacity 770 lbs |
Adjustable bottom hinge with L-Bracket to be screwed on and sealed bearings87L-G3/8" thick mounting bracket 2-11/16" Hinge diameter 3-3/4" - 4-1/16" Adjustability Maximum Capacity 1100 lbs |
|
|

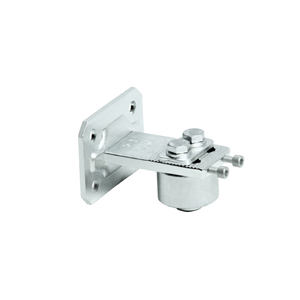

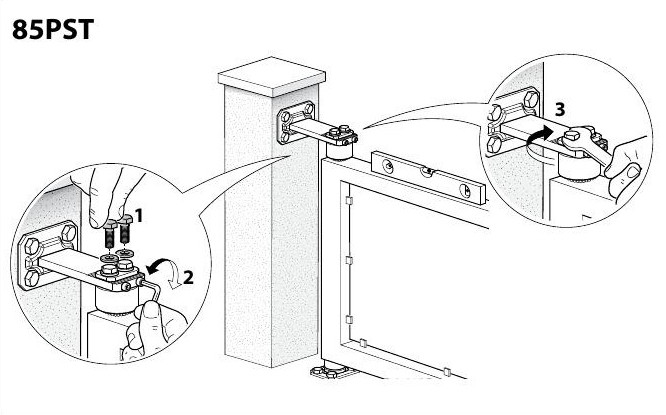

Adjustable upper hinge with plate to be screwed on and sealed bearings85PST-M3/8" thick mounting bracket 2" Hinge diameter 2-1/4" - 3-3/8" Adjustability Maximum Capacity 700 lbs |
Adjustable upper hinge with plate to be screwed on and sealed bearings85PST-G3/8" thick mounting bracket 2-11/16" Hinge diameter 3-1/2" - 4-1/16" Adjustability Maximum Capacity 1100 lbs |
|
|

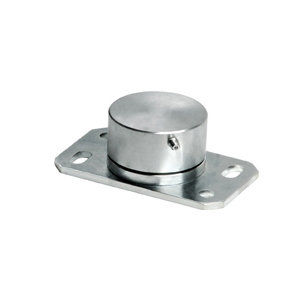

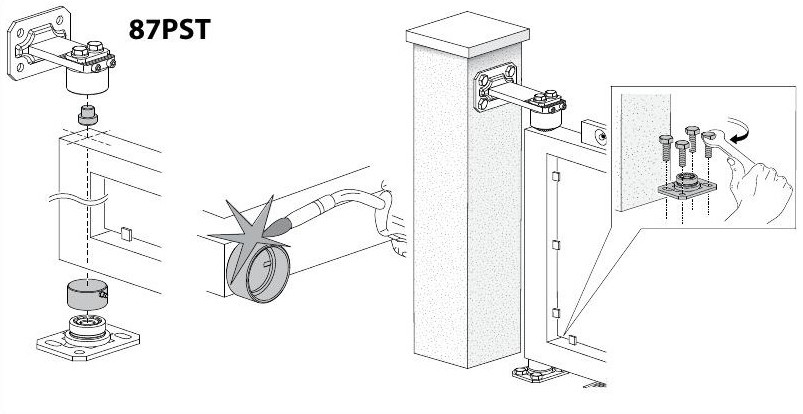

Bottom hinge with thrust bearing and plate to be screwed on and sealed bearings87PST-M3/16" thick mounting plate 2" Hinge diameter Maximum Capacity 700 lbs |
Bottom hinge with thrust bearing and plate to be screwed on and sealed bearings87PST-G3/16" thick mounting plate 2-11/16" Hinge diameter Maximum Capacity 1100 lbs |
|
|

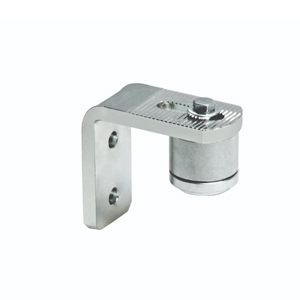

Adjustable upper hinge with L-Bracket to be screwed on86L-P3/8" thick mounting bracket 1-3/16" Hinge diameter 2" - 3-5/16" Adjustability Maximum Capacity 440 lbs |

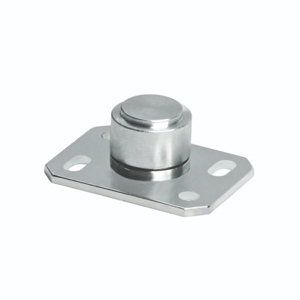

Bottom hinge with thrust bearing and plate to be screwed on87PST-P3/16" thick mounting plate Maximum Capacity 440 lbs |
|
