Ranger Telescopic Gate System - Gate Builder

  • Configure

    Step 1 of 3
    • Enter below the main measurements for selection and calculation of the Ranger Telescoping Sliding Gate most suited to your needs. Note that the length (A) requested corresponds to the width of the gate

      Gate Measurements

      How wide is the opening you need the telescoping gate to cover?
      Feet
      Inches
      Specify opening in Feet and Inches
      Error message Error message
      How many telescoping gate leafs do you need?
      Max opening: 2 leaf = 26 Ft. & 3 leaf = 40 Ft.
      2 Leaf
      3 Leaf
      Select system by number of leafs
      Error message
      Max. weight of each leaf is 0 lbs
      N/A
      The gate leaf overlap is needed to keep the gate system stable when the gate is closed and when cycling. You can increase the overlap, but doing so makes the gate panels longer and heavier. Increasing the overlap is useful if your gate panels are already built and you are matching them to fit an opening they weren't specifically designed for.
      Inches
      Minimum 14"
      Accept the standard overlap of 14" or specify a custom overlap in inches.
      Error message
      How tall will the gate be?
      Feet
      Inches
      Specify height in Feet and Inches
      Error message Error message
      Select the option that best matches your gate. We use this to estimate the weight to help keep your gate weight within spec.
      What material will your gate be made out of?
      Error message
      The max gate weight spec is important because if the weight is too heavy the drive gears will bind in the rack rail that pushes the next panel. This will cause the gates to stop or overload the gate operator. Max panel weight: 2 leaf = 880 lbs. & 3 leaf = 440 lbs.
      Lbs
      An estimate is ok
      How much will your gate weight?
      Note: The Maximum weight of each leaf for a 0 leaf Ranger system is 0 lbs
      Error message
      Selected gate weight range 0 to 0 lbs
      N/A

      Project

      Project name and description
      Enter Project name
      Error message
      Enter Project notes
      Error message

      Gate View

      Sorry, your browser does not support canvas.

      Calculations

      •
        Ranger Telescoping Sliding Gate Measurements
        Inches
        Ft-In
      • Code
        A
        Measurement
        Opening Length
        Inch
        N/A
        Feet
        N/A
      • Code
        L
        Measurement
        Leaf Panel Length
        Inch
        N/A
        Feet
        N/A
      • Code
        S
        Measurement
        Gate Overlap
        Inch
        N/A
        Feet
        N/A
      • Code
        G (min)
        Measurement
        Min Open "Tail" Space Needed
        Inch
        N/A
        Feet
        N/A
      • Code
        B1
        Measurement
        Drive Track for Primary Panel
        Inch
        N/A
        Feet
        N/A
      • Code
        B2
        Measurement
        Smooth Track for Second Panel
        Inch
        N/A
        Feet
        N/A
      • Code
        B3
        Measurement
        Smooth Track for Third Panel
        Inch
        N/A
        Feet
        N/A
      • Code
        Frame
        Measurement
        2 x 4 Rect Tube for ONE gate leaf
        Inch
        N/A
        Feet
        N/A
      •
        Summary totals for ground tracks, U-channels, and rack rail
        Inches
        Ft-In
      • Code
        RG-30P
        Measurement
        N/A
        Inch
        N/A
        Feet
        N/A
      • Code
        289G
        Measurement
        N/A
        Inch
        N/A
        Feet
        N/A
      • Code
        262
        Measurement
        N/A
        Inch
        N/A
        Feet
        N/A
      • Code
        RG-387 / CG-237
        Measurement
        U-Channel guide track RG-387 or CG-237
        Inch
        N/A
        Feet
        N/A
      • Code

        Measurement
        Gate Operator rack rail to match Operator
        Inch
        N/A
        Feet
        N/A

  • Products and Accessories

    Step 2 of 3

    Products

    • Item
      Price
      Qty
      Subtotal

    8. Ranger Kit and confirm quantity and price

    • RG2-120.50

      Ranger Kit, 2 Leaf, Fits 2" x 4" frame, 880 lb/leaf

      Item Number RG2-120.50 Weight 31.20 More info
      Price
      586.50
      Quantity
      1
      Subtotal
      586.50

    • RG2-120.50

      • Fits 2" x 4" frame
      • 880 pounds per leaf maximum
      • 26ft maximum opening
      • 1 each, Primary Drive Wheel, 5"Dia.
      • 1 each, Free Wheel for primary leaf, 5"Dia.
      • 2 each, Standard Wheels for secondary leaf, 5-3/8"Dia.

      • These drive wheels along with the rack rail attached to the gate panels and the drive track bolted to the ground provide the power transmission from leaf to leaf.

    • RG3-120.50

      Ranger Kit, 3 Leaf, Fits 2" x 4" frame, 440 lb/leaf

      Item Number RG3-120.50 Weight 48.00 More info
      Price
      1058.70
      Quantity
      1
      Subtotal
      1058.70

    • RG3-120.50

      • Fits 2" x 4" frame
      • 440 pounds per leaf maximum
      • 40ft maximum opening
      • 1 each, Primary Drive Wheel, 5"Dia.
      • 1 each, Secondary Drive Wheel, 5"Dia.
      • 2 each, Free Wheel for primary and secondary leafs, 5"Dia.
      • 2 each, Free Wheel for primary and secondary leafs, 5"Dia.
      • 2 each, Standard Wheel for third leaf, 5-3/8"Dia.

      • These drive wheels along with the rack rail attached to the gate panels and the drive track bolted to the ground provide the power transmission from leaf to leaf.


    9. Geared Ground Track Calculated for Gate

    • RG-30P

      Track, Geared for Ranger System, 6'-6"Long, Galvanized

      Geared Ground Track is Required and is used for the first two gates on a 3 leaf system and on the primary leaf on a 2 leaf system. It allows one gate panel to transmit power to the next gate leaf.
      Item Number RG-30P Weight 13.80 More info
      Price
      183.10
      Quantity
      1
      Subtotal
      183.10

    • RG-30P


    10. Smooth Ground Track Calculated for Gate

    • 289G-19.68FT

      Track, Round Profile, Galvanized, 19'8" Long

      Smooth Half Round Track is used for the last gate leaf only
      Item Number 289G-19.68FT Weight 21.60 More info
      Price
      132.10
      Quantity
      1
      Subtotal
      132.10

    • 289G-19.68FT

    • 289G-9.84FT

      Track, Round Profile, Galvanized, 9'10" Long

      Smooth Half Round Track is used for the last gate leaf only
      Item Number 289G-9.84FT Weight 10.80 More info
      Price
      86.00
      Quantity
      1
      Subtotal
      86.00

    • 289G-9.84FT


    11. Number of Alignment Pins for Smooth Track Connections

    • 291

      Connection Pin for Item 289 (round profile track)

      The alignment pin is used at the track splices to keep the smooth, round track ends aligned so the gate rolls smoothly over each splice.
      Item Number 291 Weight 0.18 More info
      Price
      3.20
      Quantity
      1
      Subtotal
      3.20

    • 291


    12. Track Installation & Allignment Tools

    • RG-10P

      Track Installation Guide for Ranger System, 2/set

      Item Number RG-10P Weight 14.00 More info
      Price
      345.20
      Quantity
      1
      Subtotal
      345.20

    • RG-10P

      Templates are purchased once and can be reused for subsequent installations.

      These alignment guide tools ensure an easy and precise installation of the rack tracks that make up the 2 and 3 leaf telescoping systems. The smooth half round track (#289) is installed first, and is used as the reference for the proper parallel placement and alignment of the rack tracks.

      The two alignment guide tools are used to maintain the correct spacing between the tracks, according to the gate frame width value selected on the tools.

      NOTE: Select 50 for 2" wide gate frames

      These guides also ensure that the rack teeth are aligned and in sync when connecting additional rack track sections together. When joining two pieces of rack track, the precise position for the teeth can be achieved using the toothed element of the template guide, positioning it directly on the joint where the two pieces of track meet.


    • RG-20

      Wheel Cutout Template Kit, 2/Set for Ranger System

      Item Number RG-20 Weight 2.00 More info
      Price
      46.70
      Quantity
      1
      Subtotal
      46.70

    • RG-20

      The template kit for wheel installation greatly simplifies marking the cut-out in the bottom tube for the primary and/or secondary drive wheel.

      The steps for installing the drive wheels in the frame:



    13. Gear Rack Rail for Secondary Leaf(s) Needed for Gate

    • 262

      Ranger Gear Rack, Galvanized Steel 1-1/4" (30mm) x 1/2" (12mm), 3'-3" Long

      Gear Rack Rail is required for Second Leaf of a 2 leaf system and for the Second and Third leaves of a 3 leaf system. It transmits the drive power into the secondary leaf from the ground track of…
      Item Number 262 Weight 5.28 More info
      Price
      34.20
      Quantity
      1
      Subtotal
      34.20

    • 262


    14. Select Rack Rail Connectors: Weld-on or Screw-On

    • 264

      Gear Rack Connector, Weld On, Galvanized

      For steel gates we recommend the Weld-on drive rack connectors. But you can also use the threaded bolt on connectors if you prefer. You will need 3 connectors per rack rail. You can also change this option in your shopping cart later if you change your plans.
      Item Number 264 Weight 0.11 More info
      Price
      1.90
      Quantity
      1
      Subtotal
      1.90

    • 264

    • 266

      Gear Rack Connector, Bolt On, Galvanized

      For aluminum gates we recommend the threaded bolt-on connectors. We do not have an aluminum weld-on option. You will need 3 connectors per rack rail. You can also change this option in your shopping cart later if you change your plans.
      Item Number 266 Weight 0.15 More info
      Price
      3.70
      Quantity
      1
      Subtotal
      3.70

    • 266


    15. Upper Guide Assembly for 1st Leaf

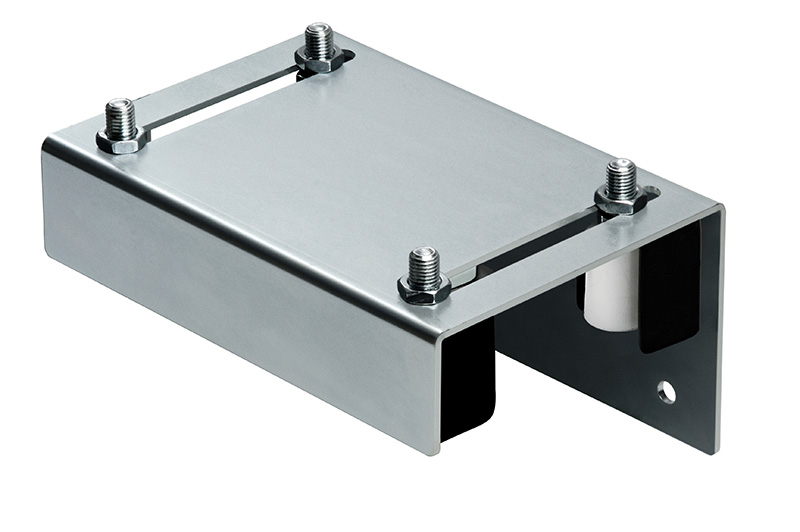

    • 256-220

      Adjustable Guide Plate for up to 3-1/8", 4 Wheel w/covers, Galvanized

      Recommended guide for first panel for all gates. If your gate tops are arched, scalloped, or have an obstruction at the top, call us for other options for guiding the first panel.
      Item Number 256-220 Weight 6.40 More info
      Price
      85.90
      Quantity
      1
      Subtotal
      85.90

    • 256-220


    16. Upper Guide Track for Secondary Leaf(s)

    • RG-387-19.68FT

      Guide Rail, 1-1/4" I.D. U-Channel, Galvanized, 19'8" Long, for Side Mount

      Item Number RG-387-19.68FT Weight 20.70 More info
      Price
      87.60
      Quantity
      1
      Subtotal
      87.60

    • RG-387-19.68FT

    • RG-387-9.84FT

      Guide Rail, 1-1/4" I.D. U-Channel, Galvanized, 9'10" Long, for Side Mount

      Upper Guide Track Required for Second Leaf (& Third Leaf on 3 Leaf system). Galvanized Steel is typically used with Steel, Chain Link, or Wood Gates. Aluminum guide track is typically used with Aluminum, PVC / Vinyl Gates, or aluminum framed chain link gates.
      Item Number RG-387-9.84FT Weight 10.30 More info
      Price
      61.50
      Quantity
      1
      Subtotal
      61.50

    • RG-387-9.84FT

    • CG-237-20FT

      Guide Rail, 1-1/4" I.D. U-Channel, Aluminum, 20FT, for Side Mount

      Item Number CG-237-20FT Weight 13.00 More info
      Price
      89.20
      Quantity
      1
      Subtotal
      89.20

    • CG-237-20FT

    • CG-237-10FT

      Guide Rail, 1-1/4" I.D. U-Channel, Aluminum, 10FT, for Side Mount

      Upper Guide Track Required for Second Leaf (& Third Leaf on 3 Leaf system). Galvanized Steel is typically used with Steel, Chain Link, or Wood Gates. Aluminum guide track is typically used with Aluminum, PVC / Vinyl Gates, or aluminum framed chain link gates.
      Item Number CG-237-10FT Weight 6.50 More info
      Price
      44.60
      Quantity
      1
      Subtotal
      44.60

    • CG-237-10FT


    17. Select Required Upper Guide Assembly(s) for Secondary Leaf(s) | Choose one RG-254 or RG-252 or None

    • NONE

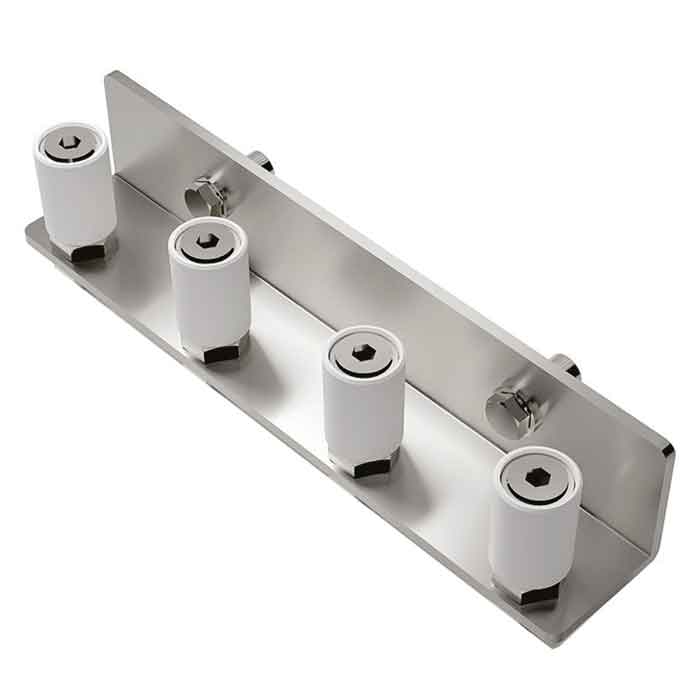

    • RG-254

      Guide Roller Assembly, 4 Rollers 1-1/4" dia. x 12" Long

      The 4 roller guide plate is recommended to add horizontal stability to the secondary panels while opening and closing.
      Item Number RG-254 Weight 4.20 More info
      Price
      44.40
      Quantity
      1
      Subtotal
      44.40

    • RG-254

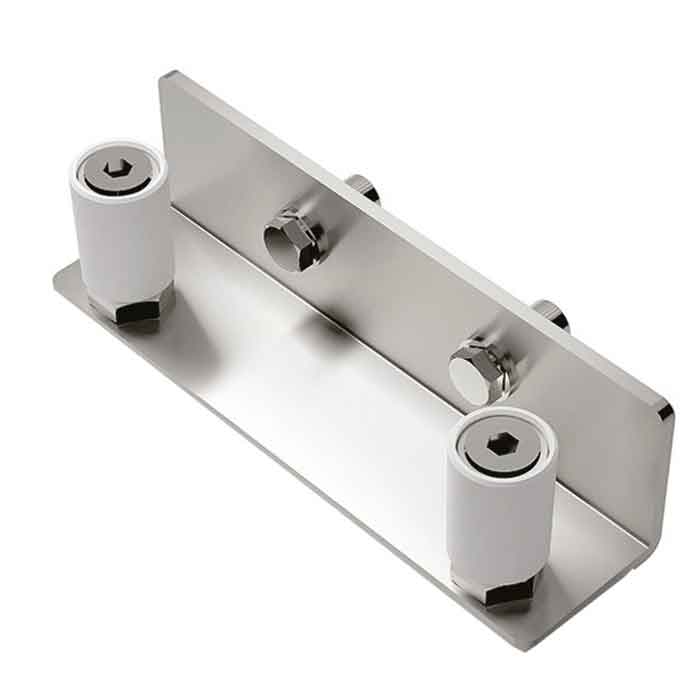

    • RG-252

      Guide Roller Assembly, 2 Rollers 1-1/4" dia. x 8-1/4" Long

      The 2 roller guide plate is an economical alternate to the recommended 4 roller guide to add horizontal stability to the secondary panels while opening and closing. It is not suggested for high wind applications or privacy gates.
      Item Number RG-252 Weight 2.90 More info
      Price
      29.00
      Quantity
      1
      Subtotal
      29.00

    • RG-252


    18. Select Brush Kit(s) for Gear Ground Track

    • RG-15

      Brush Kit for RG-30 Track, 2 per set

      Brush Kits are Recommended accessories. The Brushes are mounted to each end of each track driven panel to sweep the Gear Ground Ttrack for debris and reduce the maintenance required to keep the track clear.
      Item Number RG-15 Weight 1.75 More info
      Price
      59.30
      Quantity
      1
      Subtotal
      59.30

    • RG-15


    19. Select Optional Receivers and Gate Stops

    19.1. Top Cup Receiver | Choose one 199-60 or 199-50 or None

    • NONE

    • 199-60

      Gate Receiver w/Shock Absorber, 2-3/8" ID

      Wider receiver for variable and windy conditions.
      Item Number 199-60 Weight 6.60 More info
      Price
      46.70
      Quantity
      1
      Subtotal
      46.70

    • 199-60

    • 199-50

      Gate Receiver w/Shock Absorber, 2" ID

      Fits more closely around the gate panel.
      Item Number 199-50 Weight 5.00 More info
      Price
      35.90
      Quantity
      1
      Subtotal
      35.90

    • 199-50


    19.1.1. Mounting Bracket

    • CG-15M

      Adjustable Mounting Bracket, Small, Galvanized

      The adjustable mounting "L" bracket is designed to allow you to mount the Top Cup and/or Gate Receiver to the side of the post so the gate can clear the opening and meet UL325/ASTM F2200 safety codes for no protrusions that can cause puncture wounds to pedestrians.
      Item Number CG-15M Weight 5.85 More info
      Price
      143.40
      Quantity
      1
      Subtotal
      143.40

    • CG-15M


    19.2. Gate Receiver

    • CG-30M

      Gate Receiver, Fits 2"-3", Galvanized, w/Nylon Rollers

      Works with the Top Cup to secure the gate in the closed position. The Gate Receiver is recommended, but not required.
      Item Number CG-30M Weight 3.40 More info
      Price
      114.90
      Quantity
      1
      Subtotal
      114.90

    • CG-30M


    19.2.1. Mounting Bracket

    • CG-15M

      Adjustable Mounting Bracket, Small, Galvanized

      The adjustable mounting "L" bracket is designed to allow you to mount the Top Cup and/or Gate Receiver to the side of the post so the gate can clear the opening and meet UL325/ASTM F2200 safety codes for no protrusions that can cause puncture wounds to pedestrians.
      Item Number CG-15M Weight 5.85 More info
      Price
      143.40
      Quantity
      1
      Subtotal
      143.40

    • CG-15M


    19.3. Runaway Gate Stop | Choose one 202 or 202F-A or None

    • NONE

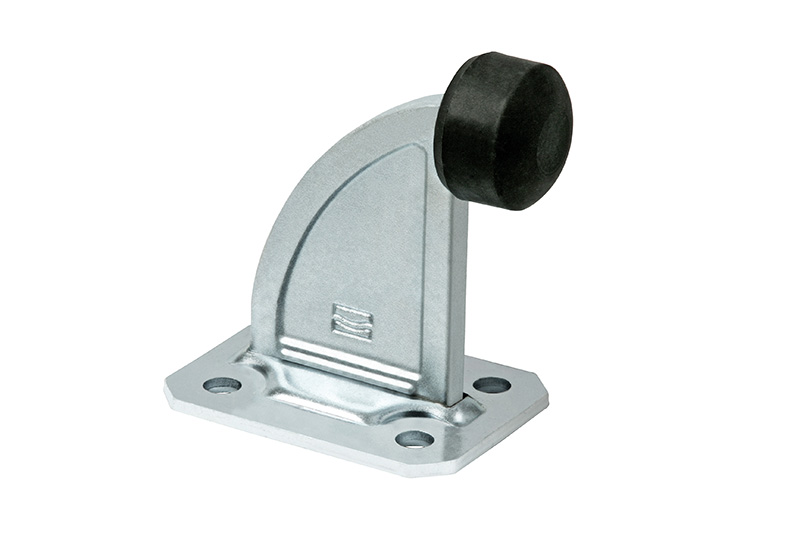

    • 202

      Gate Stop, Galvanized, 4-3/4" high, Bolt on

      Provides a physical gate stop on the open end of the gate to prevent runaway. Helps to meet UL325 & ASTM F2200 safety codes by providing a fixed gate stop. The Gate Receiver is recommended, but not required.
      Item Number 202 Weight 1.63 More info
      Price
      20.10
      Quantity
      1
      Subtotal
      20.10

    • 202

    • 202F-A

      Gate Stop, Damped, Galvanized, 3x4 base, Bolt on

      Optional damped, shock absorbing gate stop. This stop is recommended for gates that have pickets or other parts that are screwed together, rather than welded. It reduces the shock impact to the gate, reducing gate maintenance.
      Item Number 202F-A Weight 3.10 More info
      Price
      112.00
      Quantity
      1
      Subtotal
      112.00

    • 202F-A


    20. Gate Frame Material, 2 x 4 rectangle; Steel or Aluminum, or opt out.

    20.1. Choose one Steel tube for Full Rectangular Frame or Bottom Rail Only or None

    • NONE

    • RT2x4ST

      2" x 4" Rectangular Tube, Steel, 24FT

      Steel tube for full RECTANGULAR gate frame
      Item Number RT2x4ST Weight 114.00 More info
      Price
      268.00
      Quantity
      1
      Subtotal
      268.00

    • RT2x4ST

    • RT2x4ST

      2" x 4" Rectangular Tube, Steel, 24FT

      Steel tube for BOTTOM RAIL only
      Item Number RT2x4ST Weight 114.00 More info
      Price
      268.00
      Quantity
      1
      Subtotal
      268.00

    • RT2x4ST


    20.2. Choose one Aluminum tube for Full Rectangular Frame or Bottom Rail Only or None

    • NONE

    • RT2x4AL

      2" x 4" Rectangular Tube, Aluminum, 24FT

      Aluminum TUBE for full RECTANGULAR gate frame
      Item Number RT2x4AL Weight 42.00 More info
      Price
      277.60
      Quantity
      1
      Subtotal
      277.60

    • RT2x4AL

    • RT2x4AL

      2" x 4" Rectangular Tube, Aluminum, 24FT

      Aluminum tube for BOTTOM rail only
      Item Number RT2x4AL Weight 42.00 More info
      Price
      277.60
      Quantity
      1
      Subtotal
      277.60

    • RT2x4AL


  • Summary

    Step 3 of 3
    • Your Ranger hardware configuration is complete!

      Summary View

      Specify Gate Automation.
      Do you plan to automate the gate or open it manually?
      Do you plan to automate the gate or open it manually?
      Choose an option

      For options for the gate operator and access controls to complete this job, follow the link below. https://www.archirondesign.com/gate-automation-swing-and-slide-gate-operators/gate-operators.html

      Your gate is estimated to weigh between 0 lbs. and 0 lbs. You should select an operator with the weight capacity of at least 0 lbs. and an opening size greater than 0.
