AOM Slide Gate Op, CHAIN Drive, 1600 lbs, 50Ft, 12 ips speed, 24VDC w/battery backup, #40 Chain upgrade

Important. This product is intended to be installed and serviced by a professional technician. The product warranty may be voided if installed or serviced by an unqualified person.

All-O-Matic SL90DC-C Chain drive operator

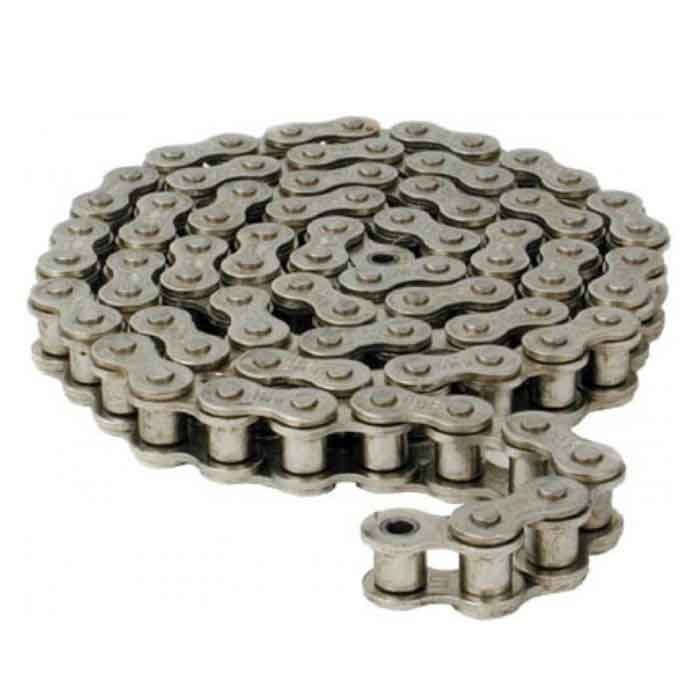

Includes 20' of #40NP chain, Bolt-on bracket, integrated battery backup.

TECHNICAL FEATURES
> Capacity: 1600 lbs and 50 Ft gate
> Gate Speed: 1 ft/sec
> Drive: Chain or Rack drive (at 11-1/2" O.C. vertical)
> Motor: 24 VDC, 1/2 HP
> Power Supply: 115/230 VAC Single Phase or 24VDC Solar Panel
> Radio Controls: Optional Linear MegaCode
> Dimensions: 16"H x 15-1/2"W x 18-1/2"D
> Weight: 95 lbs
> ETL Listed for UL 325 2018 Compliant
> Pre-wired loop rack is included
> Mechanical Foot Pedal Release

USAGE
> Residential and Commercial Focus
> Duty Cycle: Continuous
> Battery backup integrated w/ (2) 7Ah 12VDC batteries (NOTE: In case of power outage. If the gate is to spec and rolls without resistance, the gate will open 80-100 times on a fully charge battery.)
> Solar option available
> Warranty 7 years for residential, 5 years for commercial

NOTE

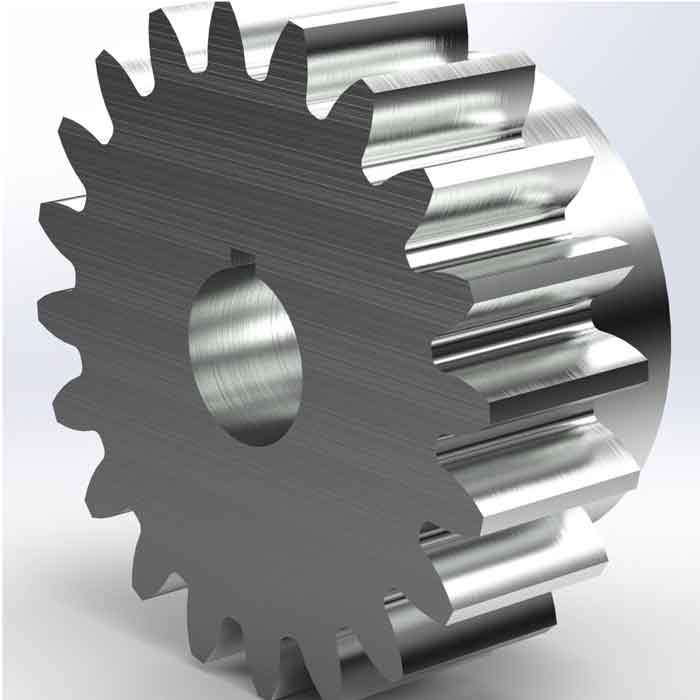

If a rack driven operator is needed, please choose items AOM-RP90 (rodent plate) and AOM-PINION-78 (pinion gear) from related products below.
