RANGER 2-LEAF SYSTEM

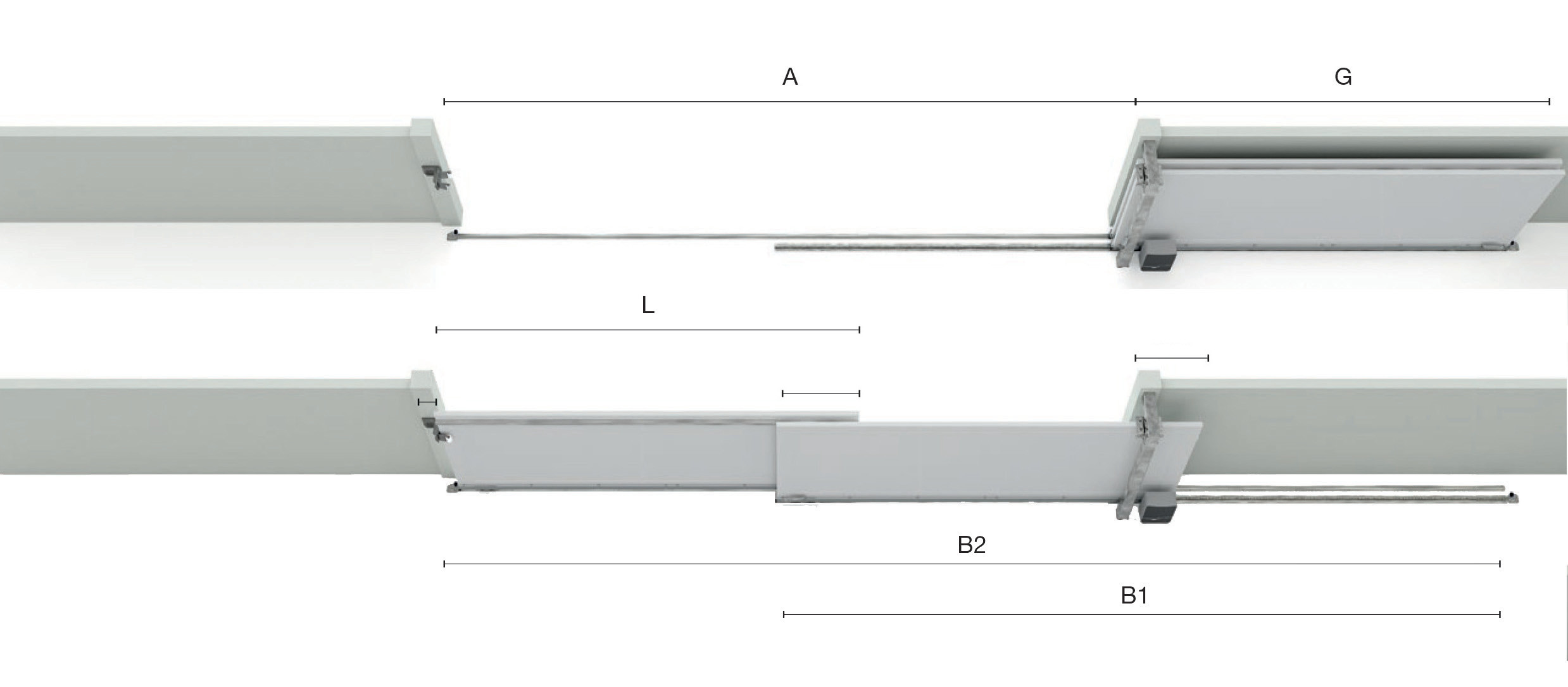

GATE FORMULAS

Gate Leaf Length

L (in) = (A + 2.5) ÷ 2 + 14

Min Space when Open

G (in) = L + 8

Rack Drive Track Length

B1 (in) = L x 2 - 14

Half Round Track Length

B2 (in) = L x 3 - 28

Note: The parameters in BOLD in the formulas above are inches.

Opening Width

A (ft)

Gate Leaf Length

L (ft)

Minimum Clear Space on Open Side

G (ft)

Rack Track Length

Item RG-30

B1 (ft)

Half Round Track Length

Item 289

B2 (ft)
6 4'4" 5' 7'6" 10'8"
8 5'4" 6' 9'6" 13'9"
10 6'4" 7' 11'6" 16'9"
12 7'4" 8' 13'6" 19'9"
14 8'4" 9' 15'6" 22'9"
16 9'4" 10' 17'6" 25'9"
18 10'4" 11' 19'6" 28'9"
20 11'4" 12' 21'6" 31'9"
22 12'4" 13' 23'6" 34'9"
24 13'4" 14' 25'6" 37'9"
26 14'4" 15' 27'6" 40'9"

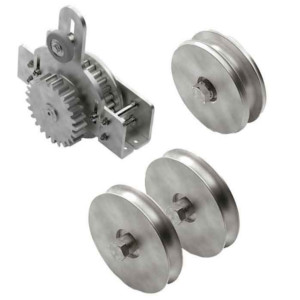

Ranger Kit

RG2-120-50

1 drive wheel
1 free wheel
2 standard wheels with half-round groove

FOR 2 leaf gates

  • Fits 2" x 4" (or taller frame)
  • 880 pounds per leaf maximum
  • 26ft maximum opening

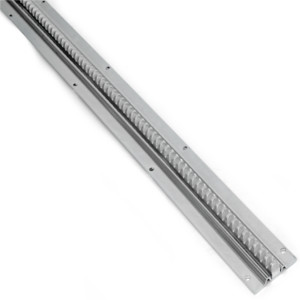

Galvanized Rack Track

RG-30P

6'6" sections

Use table above to calculate track needed by using (B1)

Spec Sheet

Galvanized Half Round Track

289G

19.68FT or 9.84FT lengths

Use table above to calculate track needed by using (B2)

Spec Sheet

Connection Pin

291

Use to connect to sections of the 289G track.

Spec Sheet

Galvanized Gear Rack

262

3'3" sections.
Is placed on the first leaf on the inner side to help drive the second leaf

Spec Sheet

Gear Rack Connection

266

This gear rack connector will be screwed in place.

(3 connectors are needed for each 3'3" section of gear rack)

Spec Sheet

Gear Rack Connection

264

This gear rack connector will be welded in place.

(3 connectors are needed for each 3’3” section of gear rack)

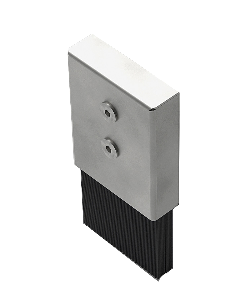

Cleaning Brush

RG-15

The cleaning brush will help keep the rack track (RG-30P) clean as the gate opens and closes

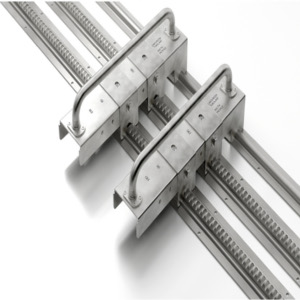

Template Guide Kit for Rack Track Installation

RG-10

These alignment guide tools ensure a rapid and precise installation of the rack tracks that make up the 2 and 3 leaf telescoping systems. The smooth half round track (#289) is installed first, and is used as the reference for the proper parallel placement and alignment of the rack tracks. The two alignment guide tools are used to maintain the correct spacing between the tracks, according to the gate frame width value selected on the tools. These guides also ensure that the rack teeth are aligned and in sync when connecting additional rack track sections together.

Spec Sheet

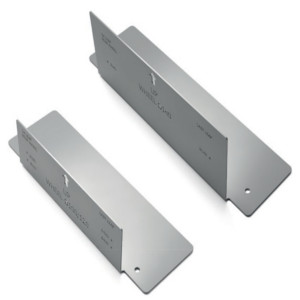

Template Kit for Wheel Installation

RG-20

Use these templates to mark the bottom frame for easy installation of the wheels.
